Shredder Tristoc TT97

The shredders Mod. TrisToc TT97, thanks to their heavy-duty construction are the ideal instrument for shredding and chopping in the open field: bushes, straw, corn stalks, crop residues, woody or organic materials, which are to be found on fallow soil.Ideal for tractors from 80 to 160 HP, they are manufactured in 3 working widths (2.8, 3 and 3.2 m).

alpego_inside_logo

3D

Photo gallery

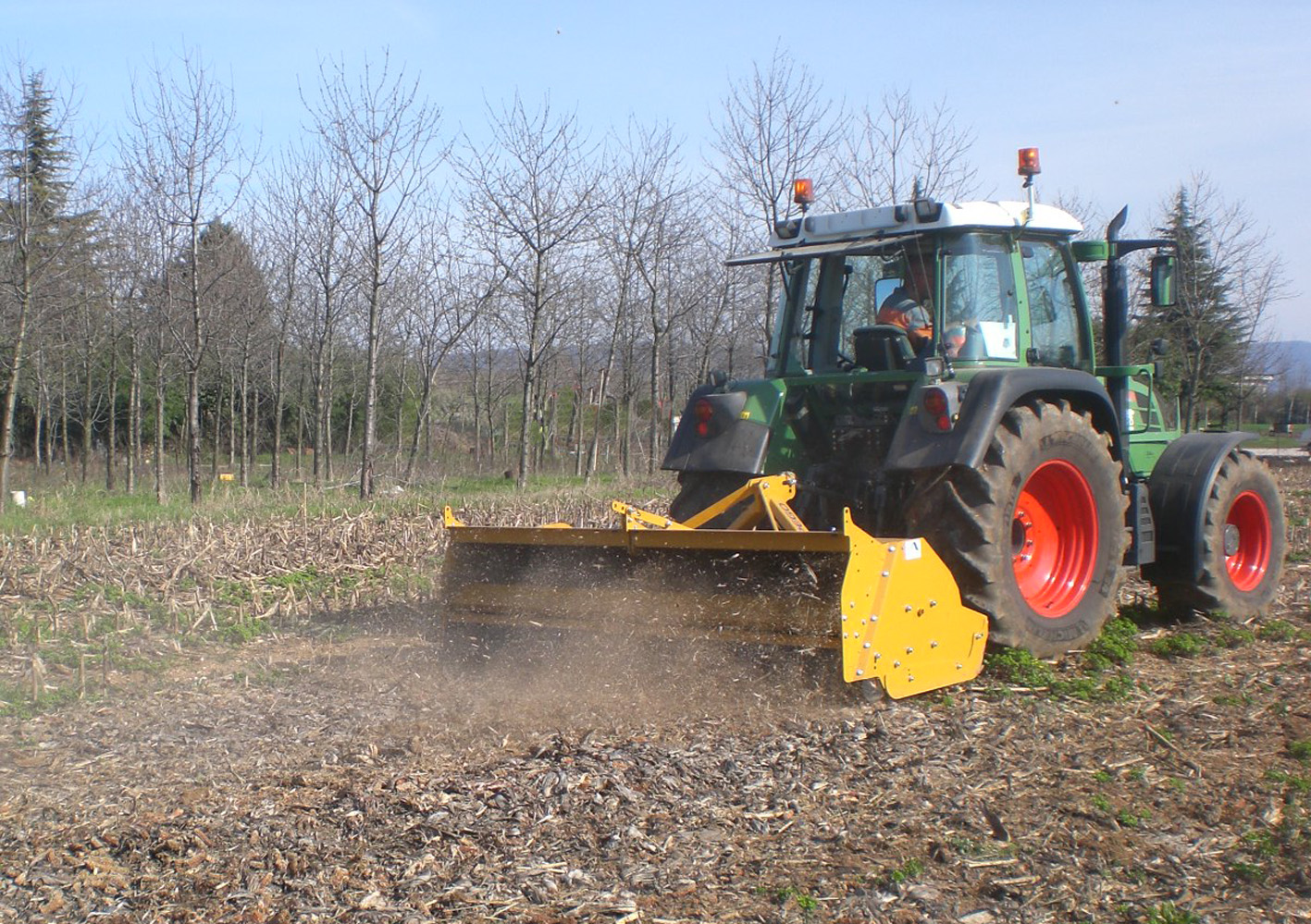

On the ground

Features

The mulching chamber, consisting of a double metal frame increases the resistance and the integrity of the machine, while protecting the rear gate against damages.

img_ControtelaioTT



alpego_inside_logo



- Monocoque frame, no welding and joints visible

- Frame without jutting parts and with inner rotor supports

TT1



Options

img_ruote_tt

Rear steering wheels

Pair of rear steering wheels as an alternative to the rear roller.

img_slitte_tt97

Set of pair of skids

img_cateneTR

Set of front protection chains

Set of front chains as an alternative to the metale shields for heavy duty use.

Technical data

  icon_trattore_potenza icon_larg_lavoro icon_larg_trasporto_con_rullo icon_mazze icon_coltelli icon_cinghia icon_diametro icon_peso
Mod. HP mm. mm. (n°) (n°) (n°) mm. Kg
Tristoc TT97-280 80-160 2800 3000 30 60 5 220 1050
Tristoc TT97-300 90-160 3000 3200 32 64 5 220 1100
Tristoc TT97-320 100-160 3200 3400 34 68 5 220 1130

Equipment

  • Machine with hammer or flail rotor (to be chosen)
  • Drive shaft with protection
  • Depth contron (to be chosen)
  • Pto 1000 rpm
  • Free wheel in oil bath positioned inside the main gearbox
  • 3-point hitch cat. 2
  • Side plase
  • EC Protections
