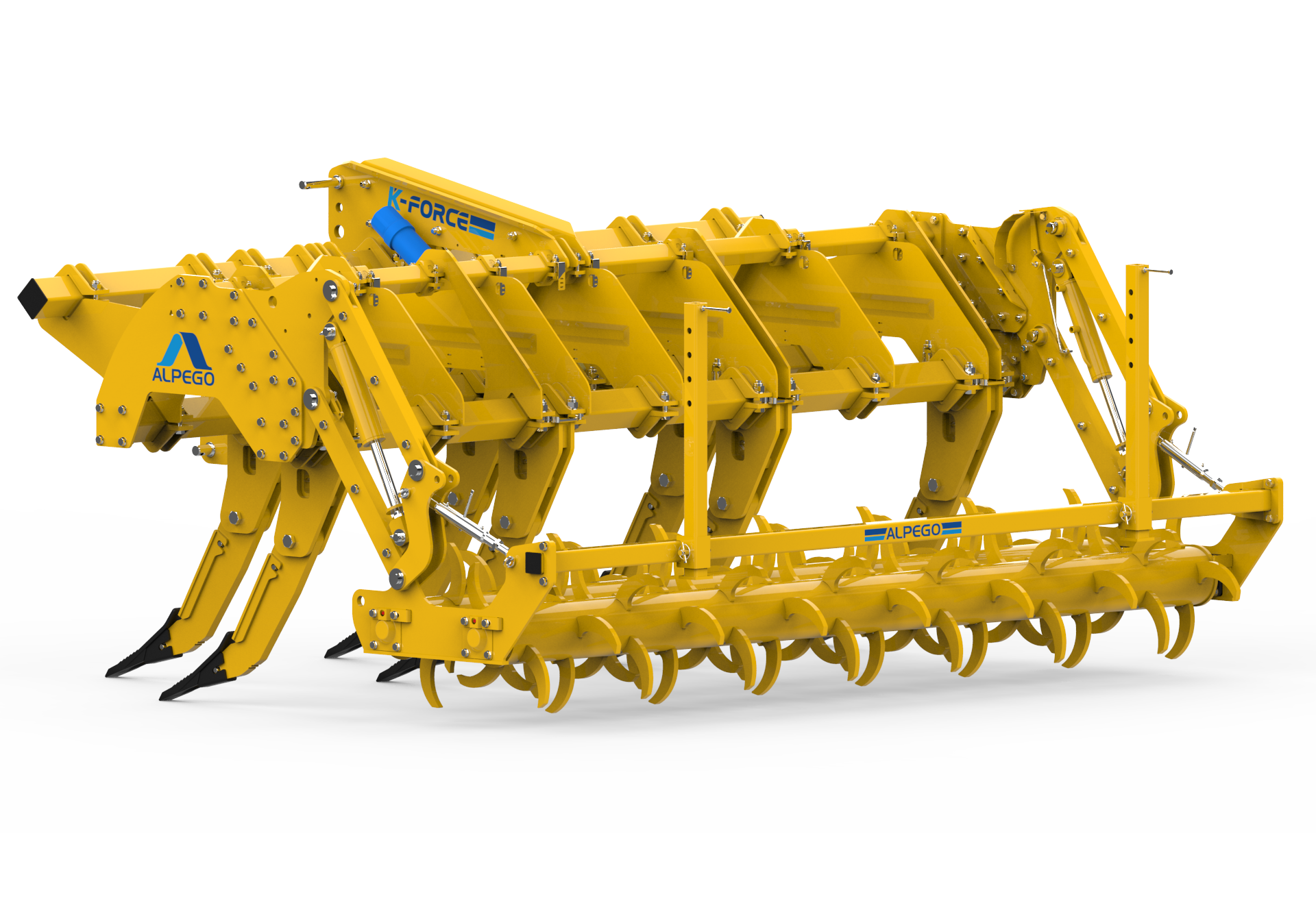

Rigid mechanic subsoiler K-FORCE

The new K-FORCE model subsoiler is intended for super-professional use, and is complete with ALFAST system and hydraulically adjusted roller as standard.
Available in sizes 3 - 3.5 and 4 m, it is recommended for use with tractors from 150 to 350 HP.

alpego_inside_logo

3D

Photo gallery

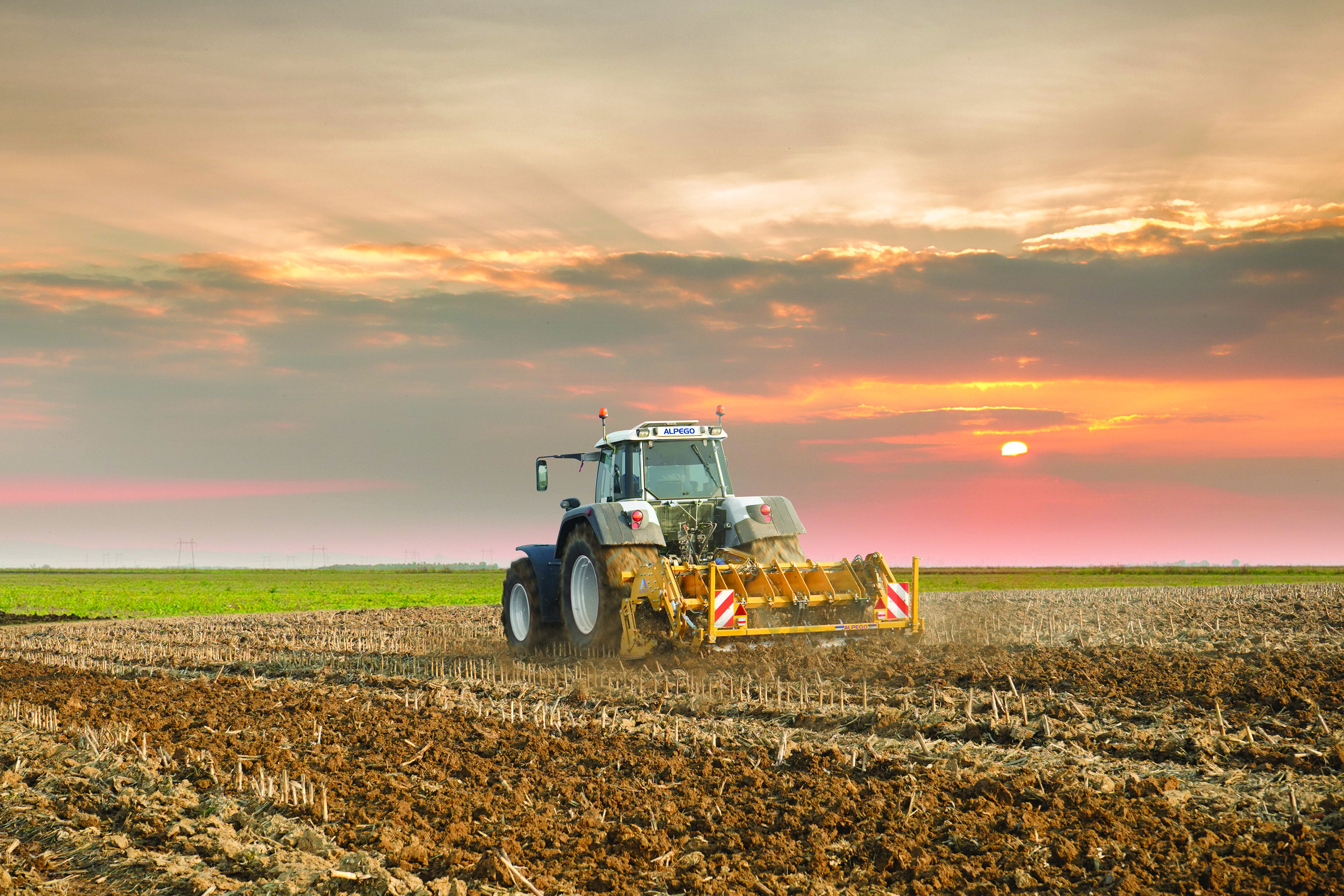

On the ground

Features

ALPEGO SUBSOILERS: Subsoiling is a tillage technique that requires shorter working times, and therefore saves fuel. In agronomic terms, subsoiling improves water drainage, enhances capillarity, and provides multiple benefits to crops with higher yields, meaning higher earnings.

CONVENTIONAL TILLAGE: All conventional tillage methods require longer working times and high fuel consumption and have drawbacks in agronomic terms: limited water drainage, reduction in capillarity, loss of yield and thus lower earnings.

Vantaggi RIPUNTATURA





The Alpego subsoilers can perform 3 types of work:

  1. Deep subsoiling (without options)
  2. Intermediate subsoiling, even with crop residues, with the use of clod shattering fins (option).
  3. Superficial subsoiling, even with crop residues, with the use of the DEK ploughshare (option).

3 Tipologie lavorazione_ripuntatori



Shank 35 mm thick with curved profile to reduce draft force and improve mixing both in-depth on the surface.

img_ancoraCrakerProfilo



Mechanical shear bolt safety mounted on each shank. When hitting an obstacle the shear bolt snaps, thereby protecting the implement structure.

img_sicurezzaBullone



New-design reflective side tables kit complete with LED lights installed above the rear roller.

Tabelle_3



New hydraulically retracted clod-restricting side boards, designed not to project when not in use, easily disabled when not required for simple jobs with no operator safety problems.

Bandelle_Nuove



Alpego introduces an innovative ultra-fast ploughshare and accessory replacement system. With ALFAST, all you need is a hammer. No need to remove pins or screws.
The patented system consists of a clip which is moved along the shaft to free or lock the accessory on the shank.

ALFAST_system



Not only do the two Franter rollers perform a preliminary important superficial tillage of the soil and level it ideally, they also make the ensuing operations shorter and easier.
The double roller also contributes remarkably to efficiently mix in the organic residues.

H22 Hydraulic FRANTER roller (Ø 194 mm) also ideal for heavy soils.

Franter_H22





1) MODULAR PARALLELOGRAM KIT
Alpego has designed the modular parallelogram kit enabling quick changing of roller type.
With this accessory, the machine is extremely versatile and suitable for all conditions.

KIT PARALLELOGRAMMA MODULARE

2) H50 HYDRAULIC FRANTER ROLLER
New H50 franter roller ideal for all soil types; floats over the lightest soils but crumbles heavy soils very effectively.
Hydraulic depth adjustment (Ø 220 mm)

3) G6 CAGE ROLLER
New GABBIA G6 roller, ideal for dry, light and medium-density soils. (Ø 550 mm)

4) DR6 DISC ROLLER
New DR6 DISC roller suitable for heavy soils. (Ø 600 mm)

All-bolted frame with new design for higher performances. New side plate design for faster roller mounting.
The high strength steel used provides the optimal trade-off between light weight and resistance.

Telaio



Clamps are diagonally fitted to reduce stresses on bolts, minimising the number of bolt failures.

img_fissaggioAncora



The spacer allows use of a longer screw, improving its elasticity and reducing the risk of failure.

img_ammortizzatoreMorsetto



New roller depth gauge clearly visible from the tractor driving seat. Available as standard on all hydraulically adjusted Franter rollers and on the modular parallelogram kit.

Indicatore profondità H12



New angle gauge integrated in frame. Its internal and external positioning ensures visibility from the ground and from the driving seat.

indicatore_inclinazione



New spare bolt holder integrated in frame.

portabulloni



The TROFEO ploughshares have an exclusive design, a variable thickness and a heavy-duty tip with a structure made of a special forged steel, to improve the performance.

trofeo_nero



alpego_inside_logo



Options

Esplosore_ALFAST

Clod-shattering fins ALFAST

Clod-shattering fins, the adjustable lateral fins achieve a better crumbling and turnover of the upper level of the soil.

img_ruote ripuntatore

Pair of rear wheels

Bandelle_Nuove

New telescopic clod-restricting side boards

New hydraulically retracted clod-restricting side boards, designed not to project when not in use, easily disabled when not required for simple jobs with no operator safety problems.

Tabelle_3

New reflective side tables and lights kit

New-design reflective side tables kit complete with LED lights installed above the rear roller.

Technical data

  icon_profondità_ripuntatore icon_vomere_ripuntatore icon_distanza_tra_ancore
Mod. HP mm. mm. mm. (n°) mm. Kg
K-FORCE 7-300 150-310 3000 3002 650 7 422 2125
K-FORCE 7-350 150-310 3500 3495 650 7 500 2255
K-FORCE 9-400 175-350 4000 3996 650 9 445 2610

Equipment

  • “ALFAST” Extra Quick release ploughshares
  • “ALFAST” Extra Quick release wearproof protection of the Shanks
  • 3-point hitch cat. 3rd/4th N + 3rd USA/4th N USA
  • Double support leg (mountable on roller)
