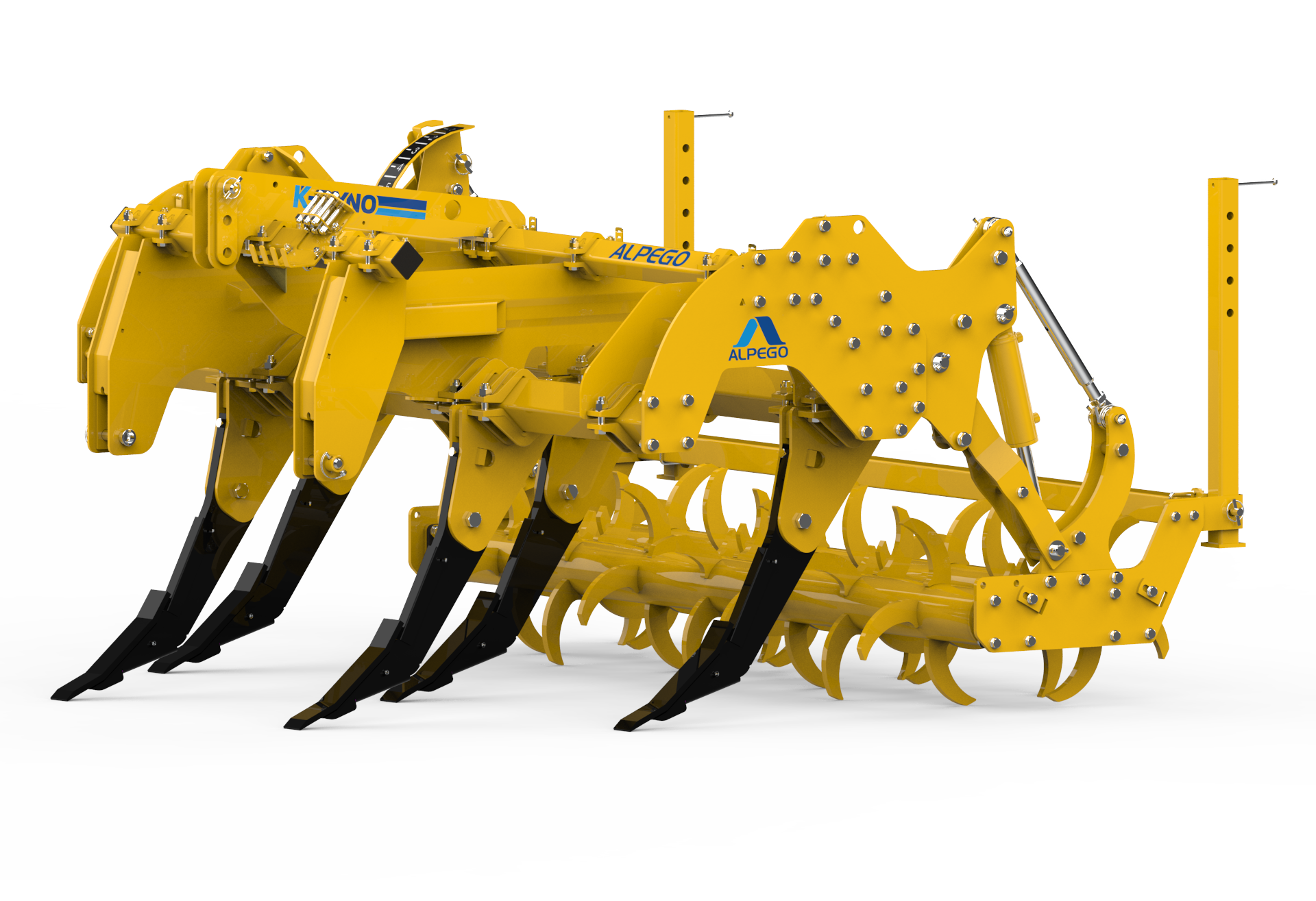

Rigid mechanic subsoiler K-DYNO

ALPEGO SUBSOILERS: Subsoiling is a tillage technique that requires shorter working times, and therefore saves fuel. In agronomic terms, subsoiling improves water drainage, enhances capillarity, and provides multiple benefits to crops with higher yields, meaning higher earnings.

CONVENTIONAL TILLAGE: All conventional tillage methods require longer working times and high fuel consumption and have drawbacks in agronomic terms: limited water drainage, reduction in capillarity, loss of yield and thus lower earnings.

The Alpego subsoilers can perform 3 types of work:

1. Deep subsoiling (without options)
2. Intermediate subsoiling, even with crop residues, with the use of clod shattering fins (option).
3. Superficial subsoiling, even with crop residues, with the use of the DEK ploughshare (option).

The curved shank penetrates the ground gradually, reducing the draft force required, and improves mixing of the soil both in depth and on the surface, by overturning the clods.

Mechanical shear bolt safety mounted on each shank. When hitting an obstacle the shear bolt snaps, thereby protecting the implement structure.

Not only do the two Franter rollers perform a preliminary important superficial tillage of the soil and level it ideally, they also make the ensuing operations shorter and easier.
The double roller also contributes remarkably to efficiently mix in the organic residues.

M12 Mechanical FRANTER roller (Ø 140mm) ideal for light soils.

H12 Hydraulic FRANTER roller (Ø 140mm) ideal for light soils.

New hydraulically retracted clod-restricting side boards, designed not to project when not in use, easily disabled when not required for simple jobs with no operator safety problems.

New-design reflective side tables kit complete with LED lights installed above the rear roller.

All-bolted frame with new design for higher performances. New side plate design for faster roller mounting.
The high strength steel used provides the optimal trade-off between light weight and resistance.

New roller depth gauge clearly visible from the tractor driving seat. Available as standard on all hydraulically adjusted Franter rollers and on the modular parallelogram kit.

New angle gauge integrated in frame. Its internal and external positioning ensures visibility from the ground and from the driving seat.

New spare bolt holder integrated in frame.

The spacer allows use of a longer screw, improving its elasticity and reducing the risk of failure.

The TROFEO ploughshares have an exclusive design, a variable thickness and a heavy-duty tip with a structure made of a special forged steel, to improve the performance.
