Power harrow DmaX AI

The ROTODENT DmaX is a folding power harrow unique in its category. Its strong point is the TWIN-FORCE “maX” mechanical peculiarity and its heavy-duty structure. It is available in the working widths 4.5 and 5, 6, 7 and 8 m. for tractors from 180 to 500 HP.

alpego_inside_logo

3D

Galleria fotografica


3D

Photo gallery

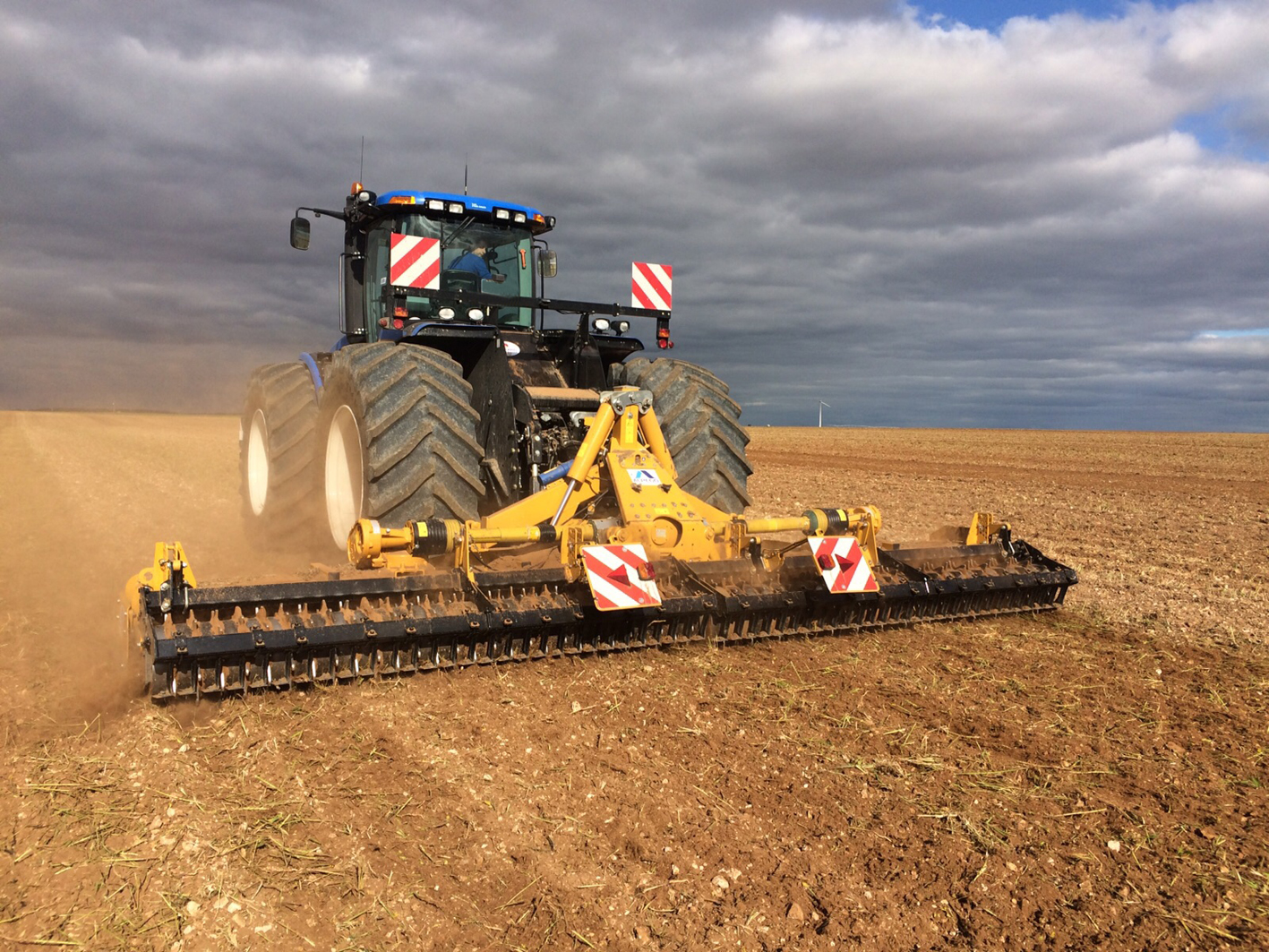

On the ground

Features

The Twin-Force system consists of 2 rotors held together by a single support plate for a double sturdiness.

The quality of the Timken taper roller bearings combined with the hardened gears guarantee the highest reliability of the transmission.

The power harrow with all these devices makes it possible to reach excellent performances in terms of:

  • A greater working depth (on average more than 100 mm. as compared with a normal power harrow)
  • An increase of the forward speed
  • The best use of the available power
  • The greatest reliability and a minimum of maintenance
  • Hitching to tractors of very great power

Twin force TMAX



The AI-GUARD, from the AI package, foresees the monitoring of several parameters of the machine. From the monitor it is possible to check the temperature of the mechanical transmission organs and their number of revolutions. Visual/acoustic alarms send a warning when the critical levels have been exceeded. Moreover, the system recommends the programmed maintenance operations.

It will also be compatible with the new electronic systems which Alpego will develop in the future

monitor command



In the folding harrows the two folding halves can be made to float, thereby allowing the machine to adjust to the unevenness of the ground.

The power harrows DJ allows oscillation of the side frames only upward.

img_telaiFlottantiErpici



The front guards prevent rocks from entering to cause rotor damage.

img_protezioni sottovasca



Thanks to the PARALLELOGRAM system of depth adjustment , the rear roller constantly maintains the same degree of inclination, therefore:

  • The leveling bar is constantly correctly adjusted;
  • In the combination with a seed-drill the pressure of the seeding coulters is kept constant

img_parallelogramma erpice



The levelling bar is mounted directly on the rear roller, thereby improving the levelling quality and decreasing the power absorption.



By reversing the position of the changeable gears by replacing it, it is possible to have available several rotation ratios of the rotors.
This makes it possible to obtain the best possible performance of the power harrow depending on the type of soil, on the forward speed and on the required degree of crumbling.

img_cambio velocità



The quick system can be supplied separately as a set as an alternative to the traditional system, or it can be mounted directly on the machine.

img_rapidoforgiato



img_interasse rotori



img_Fasatura



The universal joints with Walterscheid automatic cam clutch guarantee the maximum working reliability even under the worst conditions.

The DmaX 700 and 800 are equipped with the P700 central universal joint and with the lateral P600 lateral universal joints

img_cardaniDMAX



The power harrow can easily be combined with an Alpego pneumatic seed-drill.

alpego_inside_logo



Options

img_rompitraccia erpici

Track eraser pair

img_rompitraccia no stop erpici

NO-STOP Track eraser pair (2 spring)

img_attacco idraulico erpici

Hydraulic linkage for seed-drill

img_correttore idraulico

Hydraulic depth adjustment

img_registro idraulico

Hydraulic levelling bar adjustment

rullo GABBIA

Cage Roller

The CAGE roller is suitable for dry soils of medium density.
With the extra kits (available only for the G5 series) it is possible to add some pipes to the cage, thereby increasing the supporting surface.
The structure of the cage does not make it suitable to support very heavy loads, such as the combined implements.

rullo SPIRALE

Spiral roller

The SPIRAL roller creates a soft and uniform seeding surface and is suitable for medium and light soils.
It can’t be used in the combinations with the seed drill

rullo SPUNTONI

Spike Roller

The SPIKE roller is very versatile, it works well even when the soil is damp and compacted.
It can be used in the combinations with the seed drill

rullo PACKER

Packer Roller

The PACKER roller has a tubular structure with a large diameter: this makes it very sturdy and particularly suited for the combinations with seed drills.
Several rows of tines guarantee the traction on the ground and a series of adjustable brushes keeps each of them clean.
The result is a compact surface, perfect for sowing.

img_rullo_otico

Rubber roller

The GOMMA (rubber) roller is suited for combinations with seed drills for cereals: it guarantees that the seed is placed at a constant depth.
The rubber covered surface and its large diameter decrease the clamming effect of the soil and makes it a roller suited for any work condition.

rullo TRAPEZIO

Trapeze Roller

The notched cast-iron roller ridges are spaced 12.5 cm or 15 cm depending on row spacing.With its diameter of 505 mm it combines a perfect rotation and a pressing of the seeding line.Designed for the combination can also work alone.It adapts perfectly to all types of dry or wet soil even in the presence of stones or crop residues.

Technical data

  icon_prof_dente icon_rotore icon_denti
Mod. HP mm. mm. mm. (n°) (n°) Kg
Rotodent DmaX-450 180-440 4562 2500 300 18 18+18 2700
Rotodent DmaX-500 180-440 5032 2500 300 20 20+20 3590
Rotodent DmaX-600 200-440 5972 2500 300 24 24+24 4160
Rotodent DmaX-700 250-500 6914 2500 300 28 28+28 4900
Rotodent DmaX-800 280-500 7854 2500 300 32 32+32 5350

Equipment

  • 1000 rpm central drive
  • Multiplespeed lateral gearboxes rotor shaft rotating at: Z=29/25 (368 rpm) Z=30/24 (396 rpm)
  • Central drive shaft 1"3/4 Z=20
  • Lateral drive shafts with automatic cam clutch
  • Hydraulic unlocking system
  • Rear light boards
  • 3-point hitch for DmaX 450/500/600:
    - 3° and 4° cat. standard
  • 3-point rigid hitch for DmaX 700/800:
    - 3° and 4° cat. standard;
    - 4° and 4° N cat. USA
  • Central track eraser
  • Supporting legs
  • Drop-forged tines (STANDARD+RAPIDO version)
