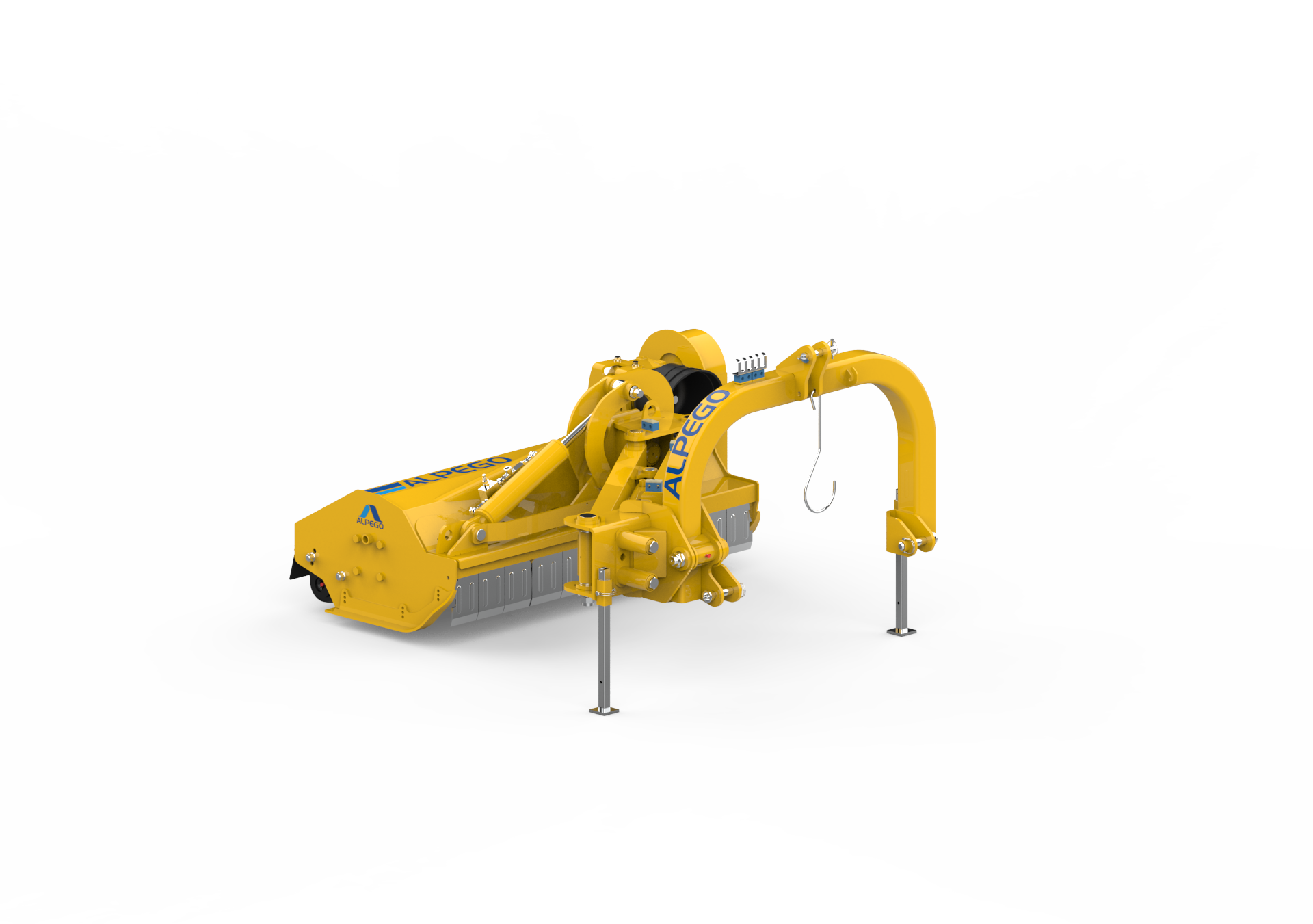

Lateral flailmower Trilat TL31

The side flail mowers Mod. TriLat TL31 are the ideal implements for the maintenance of ditch banks, road sides, meadows, and the clearing of embankments and the pruning of hedges. The double hydraulic side shifting and the gear box placed on the side of the implement allow for an increased side displacement. Ideal for tractors from 50 to 130 HP, they are manufactured in 4 working widths ( 1.6, 1.8, 2 and 2,2 m).


Photo gallery

On the ground


The side shift has been maximised by the special frame structure, which ensures greater width of movement for the drive shaft.

The new hydraulic shock-dampening, self-leveling system positioned on the tilting axis permits an easier use of the machine when there are obstacles and particularly difficult soil conditions.

Moreover it protects the entire tilting system of the machine while dampening the shocks caused during the working operation.



“No stop” Elastic anti-shock safety system.

When there are hidden obstavles the system is triggered and it blocks the mulching chamber and dampens the shock.



The self-cleaning rear roller, is characterized by an automatic self-cleaning feautre thanks to its position very close to the rotor.



The mulching chamber, consisting of a double metal frame increases the resistance and the integrity of the machine, while protecting the rear gate against damages.








img_cardano omocinetico

Universal joint

Over to the universal joint with protection, the mulcher model TL31 and TL33 include among the options the double Walterscheid wide angle drive shaft for a better regularity and security of the shifting even when the working tilt is especially steep.

Technical data

  icon_trattore_potenza icon_larg_lavoro icon_larg_trasporto_con_rullo icon_mazze icon_cinghia icon_diametro icon_peso
Mod. HP mm. mm. (n°) (n°) mm. Kg
Trilat TL31-160 55-130 1600 1800 14 4 140 705
Trilat TL31-180 65-130 1800 2000 16 4 140 745
Trilat TL31-200 75-130 2000 2200 16 4 140 775
Trilat TL31-220 75-130 2200 2400 18 4 140 855


  • Rotor with flails and larger bolts
  • Extended hydraulic lateral movement with blocking valve
  • Standard or double homokinetic universal joint (to be chosen – NOT PROVIDED AS STANDARD)
  • Rear roller Ø 140mm with protected internal bearings
  • Fixed counter-blade
  • Pair of skids
  • Pto 540 rpm
  • 3-point hitch
  • Cat. 2 with fork-shaped links
  • Free wheel in oil bath positioned inside the main gearbox
  • Kit hydraulic shock absorber
  • Brackets for the transport of the machine in the upright position
  • EC protections
