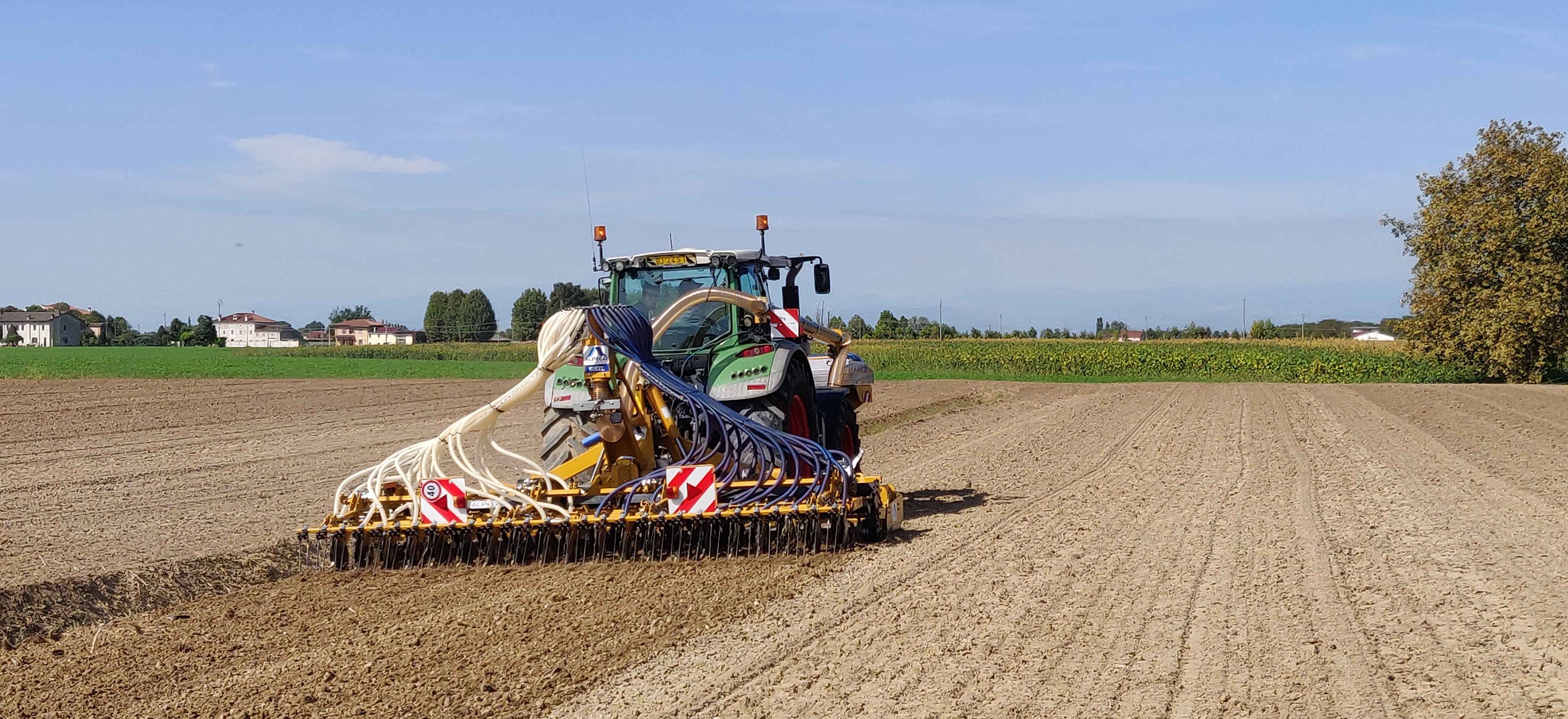

The new front hopper Fertidrill AS-Pro s made of stainless steel and is the versatile solution for seeding or fertilizing the soil.
Machine designed to be used in combination for the drilling of cereals up to a length of 6 mm. or the distribution of fertilizer in combination with different types of implements.
(rotary tiller, precision seed-drill, cultivator…..)
Large hopper, extensible on demand with a bevelled profile for a better vision from the tractor. Totally made of stainless steel, it can be used both for drilling and for fertilizing.
Great flexibility of the volumetric metering unit: suited for fine, large seeds and fertilizer with a few, simple adjustments. Made of wear-resistant stainless steel for the longest lifespan and maximum reliability.
Suited also for treated seeds or fertilizer.
The Turbo ROTAL system is an innovative system consisting of a spinning impeller located in the centre of the distribution head, that promotes a more uniform distribution of the seed to the seeding rows even in hilly areas thus reducing by a 50% factor the error in distribution homogeneity.
The Alpego Rubber drilling element makes it possible to maintain a constant drilling depth under any soil conditions and to easily overcome possible obstacles thanks to the following strong points:
- Silent Block: shock-absorbing system of the drilling element, which makes it possible to develop a maximum disc resistance of 60 Kg.
- Easy to adjust: the bar is connected with the roller through a parallelogram for the adjustment of the drilling depth and it is complete with tie-rods for the adjustment of the incidence on the soil.
- Single coulter disc: suitably slanted, with a sharp profile in order to allow a perfect penetration into the soil and a uniform rotation.
- Following harrow: easy centralized adjustment to optimize its action in the soil.
- Electronic management of the metering unit
- Automatic weighing and calibration
- Modification of the distributed seed quantity
- Alarm of the hopper reserve level
- Control of the metering unit rotation
- Forward speed
- Number of revolutions of the fan
- Pre-Start function
The machine has been designed for professional agriculture under the most severe and intensive conditions.
Thanks to the remarkable performances and the high workflows, it satisfies the most recent standards of precision agriculture.
- Large 1400 ltrs. extensible hopper
- Drilling control
- ISOBUS system (on demand)
- Easy to empty and to clean
- Energy efficient fan
- Quick unhitching with electric and hydraulic uncoupling
You can mount a kit with 4 wheels to make easy the movements of front tank.
Hydraulic row-marking disc
The row-marking disc is a device which marks a reference line in the ground in order to make the drilling operation easier.
Kit pre-sprouting discs
The pre-sprouting discs mark the gauge of the wheel track combined with the tramline system.
Hydraulic bar exclusion
The shut-off of the hydraulic drill bar makes it possible to lift- and therefore – shut off the drill bar.
Disc depth control wheel
Disc depth control wheel
Hopper extension + 250 liters
Kit supporting legs for front hopper
Auto-steering wheels. It is possible to install 4 compacting steering wheels Ø760mm.
Supplementary ballast (25 kg each)
Predisposition to attack ballast up to 600 Kg
Kit Rotal APD lid without 12V control
Electroni device for the reduced-width seed drilling
Restrictor element of the distribution head
Centralised device for controlling the tramline with shut-off valve. Used to manage all cycles in the most common weed control and spraying systems.
Seed covering harrow
The following harrow is a device at the rear of the coulter ant it consists of a rake which cover up the drilled seeds when going over them.
- Hydraulic fan
- 2nd category front 3-point hitch
- Quick emptying of the hopper
- Front LED lights (low beam / high beam) and reflective side tables
- Frontal folding loading platform
- Ballast holder (Can hold up to 800 kg)
- Metering unit DOSAL with volumetric variator in stainless steel
- suitable for seeds (fine / coarse) or fertilizers
- Front/rear connecting pipes with adjustable holder for electric cables
- Weighing kit (bag + electronic weighing)
- Available in rigid or foldable version
- Width when folded: 2.5 m
